OrCAD graphic tutorial: print schematic
Project selected page in that management window
Right->SchemaTIc Page ProperTIes
The SchemaTIc Page ProperTIes dialog box appears. Select the Grid reference tab. Pictured
Select the following output method here:
1. Whether the border is printed
2. Whether the Title block is printed
3. Whether the large margin of the page is printed
After selecting it, make sure. Other pages are set up in the same way.
Select the .dsn file and then file->print
Setup to set print options
Select Scale to paper size in Scale. As shown.
Generate component list
Select the .dsn file
Menu report->bill of material->standard
pop-up dialogue box

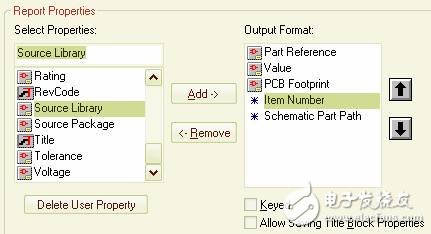

Select an option in the output format, use the right up and down arrows to move up and down, adjust the order, you can also use the Remove on the left, remove this option, the final output of the report column and the order and output format consistent.
Add output options, select the options you want to export in the Select Properties on the left, and click Add to add to the output format.
If Export BOM report to Excel is selected, it is output as an Excel table. Otherwise it will be output in web page format.
The output is as follows
Another output form:
Select the .dsn file
Menu tools->bill of material
The bill of material dialog box is displayed. The options are set as shown in the figure. The default is.
The list of generated components is as shown in the figure, and components with the same value are listed in groups.
